Special colour gas cylinder

Special colour office desk chair lift cylinder is height adjustment device of office chair. It improves the inconvenience of the previous chair with metal spring based on highly developed technology.

Inquire Now

Add to Cart

Product Detail

Chair gas strut Features:

GAS CYLINDER is height adjustment device of office chair. It improves the inconvenience of the previous chair with metal spring based on highly developed technology. It is widely used in the office, school, and home chair because of safety, comfort, smooth rotation, no mechanical noise during the height adjustment, and height adjustment with no limit through internal movement of gas.

office chair cylinder Application:

Office chair

School chair

Home chair

Test Methods:

International test standards required

Any customer's test requirement

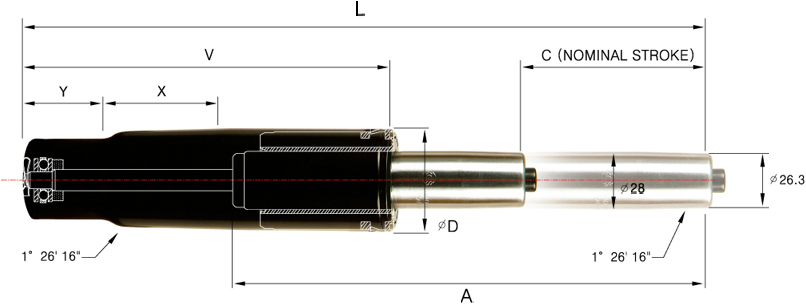

Special colour gas cylinder Structural diagram

office chair cylinder Available sizes

Stroke 60~100

STROKE		L	C	V	D	X	Y	A
60	A	262	52	165	50	60	0	185
	B	262	52	167	50	58	17	185
	C	262	52	167	50	58	43	185
	D	262	52	150	50	65	0	185
	E	262	52	150	50	58	17	185
80	A	287	72	170	50	58	14	190
	B	306	72	185	50	60	0	209
	C	306	72	187	50	58	17	209
	D	306	72	187	50	58	43	209
	E	306	72	168	50	58	0	209
	F	306	72	170	50	58	17	209
100	A	349	92	200	50	58	37	232
	B	349	92	200	50	58	14	232
	C	349	92	197	50	58	0	232
	D	349	92	185	50	60	0	232
	E	349	92	197	50	58	17	232
	F	349	92	197	50	65	0	232
	G	349	92	200	50	58	27	232

Stroke 100~116

STROKE		L	C	V	D	X	Y	A
100	H	349	92	195	50	60	0	232
	I	349	92	197	50	58	17	232
	J	349	92	197	50	58	43	232
	K	349	92	185	50	70	0	232
	L	369	92	197	50	58	17	252
	M	359	92	195	50	58	30	242
	N	359	92	185	50	58	37	242
	O	326	92	185	50	58	27	209
108	A	357	100	217	50	101	0	232
	B	355	100	185	50	70	0	230
	C	350	100	197	50	65	0	225
	D	355	100	195	50	70	0	230
	E	352	100	200	50	58	27	227
116	A	356	108	203	50	58	41.5	223
	B	385	108	215	50	70	0	252
	C	385	108	215	50	58	43	252
	D	365	108	200	50	58	14	232
	E	380	108	217	50	58	17	247

Stroke 120~140

STROKE		L	C	V	D	X	Y	A
120	A	384	112	215	50	70	0	247
	B	384	112	215	50	58	17	247
	C	396	112	232	50	58	30	259
	D	384	112	215	50	58	48	247
	E	379	112	197	50	65	0	242
	F	384	112	228	50	58	43	247
125	A	394	117	217	50	58	17	252
	B	394	117	215	50	65	0	252
	C	394	117	217	50	58	43	252
	D	394	117	215	50	60	0	252
	E	394	117	215	50	58	17	252
	F	394	117	215	50	58	43	252
	G	394	117	215	50	65	0	252
128	A	397	120	230	50	70	0	252
133	A	433	125	245	50	58	14	283
133	B	433	125	245	50	58	43	283
140	A	427	132	230	50	58	17	270
140	B	416	132	235	50	58	22	259

Stroke 143~270

STROKE		L	C	V	D	X	Y	A
143	A	410	135	225	40	48	0	252
	B	443	135	235	40	65	0	283
	C	412	135	230	50	65	0	252
	D	412	135	230	50	65	0	252
	E	412	135	236	50	52	0	252
	F	412	135	230	50	49	0	252
160	A	471	152	250	50	60	0	294
	B	483	152	250	50	60	0	306
	C	469	152	255	40	50	0	292
170	A	491	162	280	50	44	0	304
200	A	574	192	313	50	58	17	357
200	B	535	192	290	50	58	22	318
210	A	565	202	318	50	58	17	338
	B	565	202	318	50	65	0	338
	C	550	202	300	50	58	27	323
	D	612	202	340	40	48	0	387
270	A	693	262	375	50	58	0	406
270	B	693	262	375	50	58	43	406
