Chair gas cylinder Application:
Home Office, Living Room, Bedroom, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Storage & Closet, Wine Cellar, Hall, Home Bar, Basement, Gym, Villa, Office Building
Design Style: Modern
Material: Stainless Steel
Use: bar chair
Metal Type: Stainless Steel
Place of Origin: Jiangsu, China
Brand Name: SGY
Model Number: 200 mm

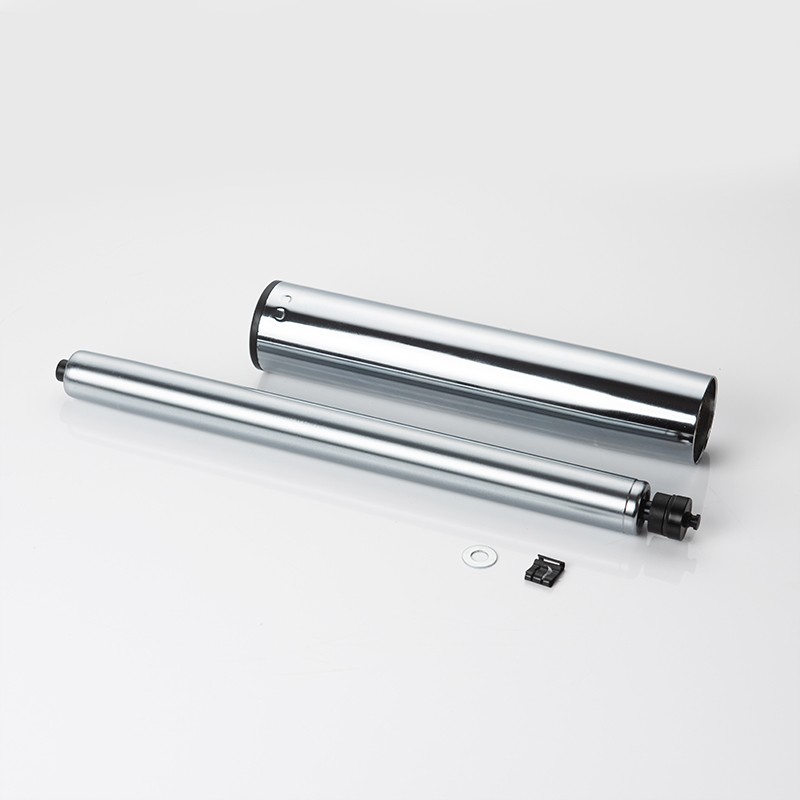

Name: 200mm chrome welding gas lift cylinder for bar chair
chair gas cylinder Feature: Stable, safety, smooth and noiseless
Certificate: SGS BIFMAX5.1 EN 1335; TUV LGA
Usage: office chair
Tube thickness: 2.0mm
Packing: 20 pcs one carton
Supply Ability: Supply Ability 600000 Piece/Pieces per month
chair gas cylinder Product Description
Model | 200mm | Color | chrome or black |
Product Name | 200mm class3 chrome welding gas lift cylinder for bar chair | Weight | 1.28kgs/pc |
Outside Tube Diameter | 38mm/40mm/50mm | Packing | 10 pcs/ctn |
Thickness | 2.0mm/1.5mm | Loading Quantity | 20 GP"30000pcs 40HQ 38000 pcs |
CBM(M3) | 0.011 CBM | Price Term | FOB Shannghai or FOB Ningbo |
Output | 600000 per month | Payment | T/T: 30% deposit once order confirmed, 70% balance before delivery |
Delivery Detail | About 15 days after receiving the deposit | Guarantee | 5 years |
Class/Standard | Class is different from the thickness of Gas spring's cylinder tube and piston tube | ||
Class 1---1.2mm, cheaper price, two year warranty (Normal) | |||
Class 2---1.5mm, cheaper price, three year warranty (Better) | |||
Class 3---2.0mm, expensive price, five year warranty (Much Better) | |||
Class 4---2.5mm, more expensive price, five year warranty (Best) | |||

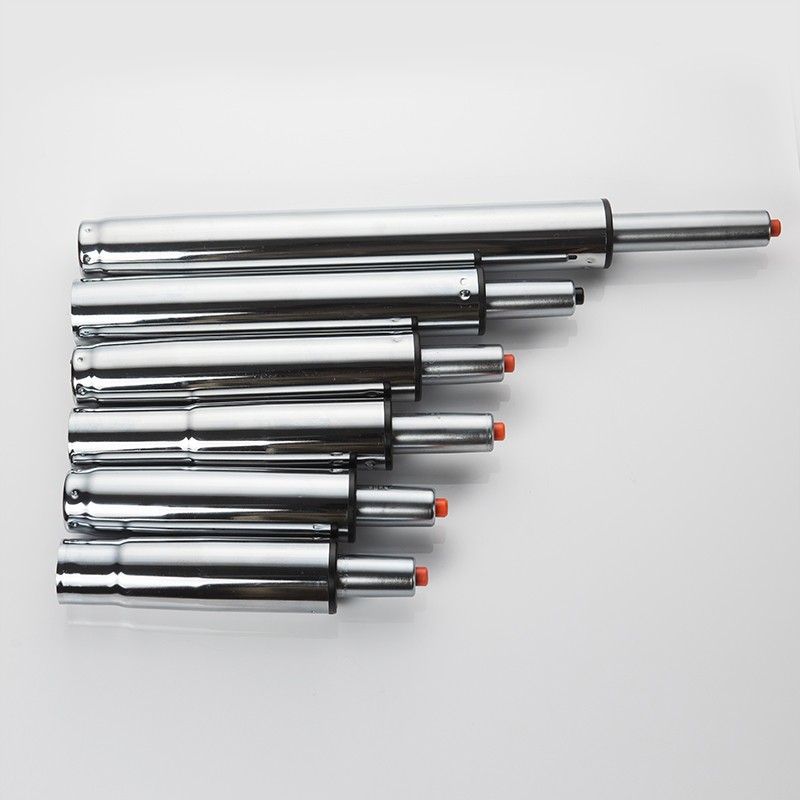

Type | Different Stroke Gas spring in different application of the chairs | ||
Boss Chair: 40mm, 60mm, 80mm | |||
Office Chair: 80mm, 100mm, 120mm, 140mm | |||
Bar Chair: 160mm, 180mm, 200mm, 260mm, 330mm | |||
Product Features | 1.Standpipe diameter: 50mm | ||
2.Reliable seal performance | |||
3.Qualified rate of products >99.999% | |||
4.Smooth and noiseless | |||
5.Stable and safety | |||

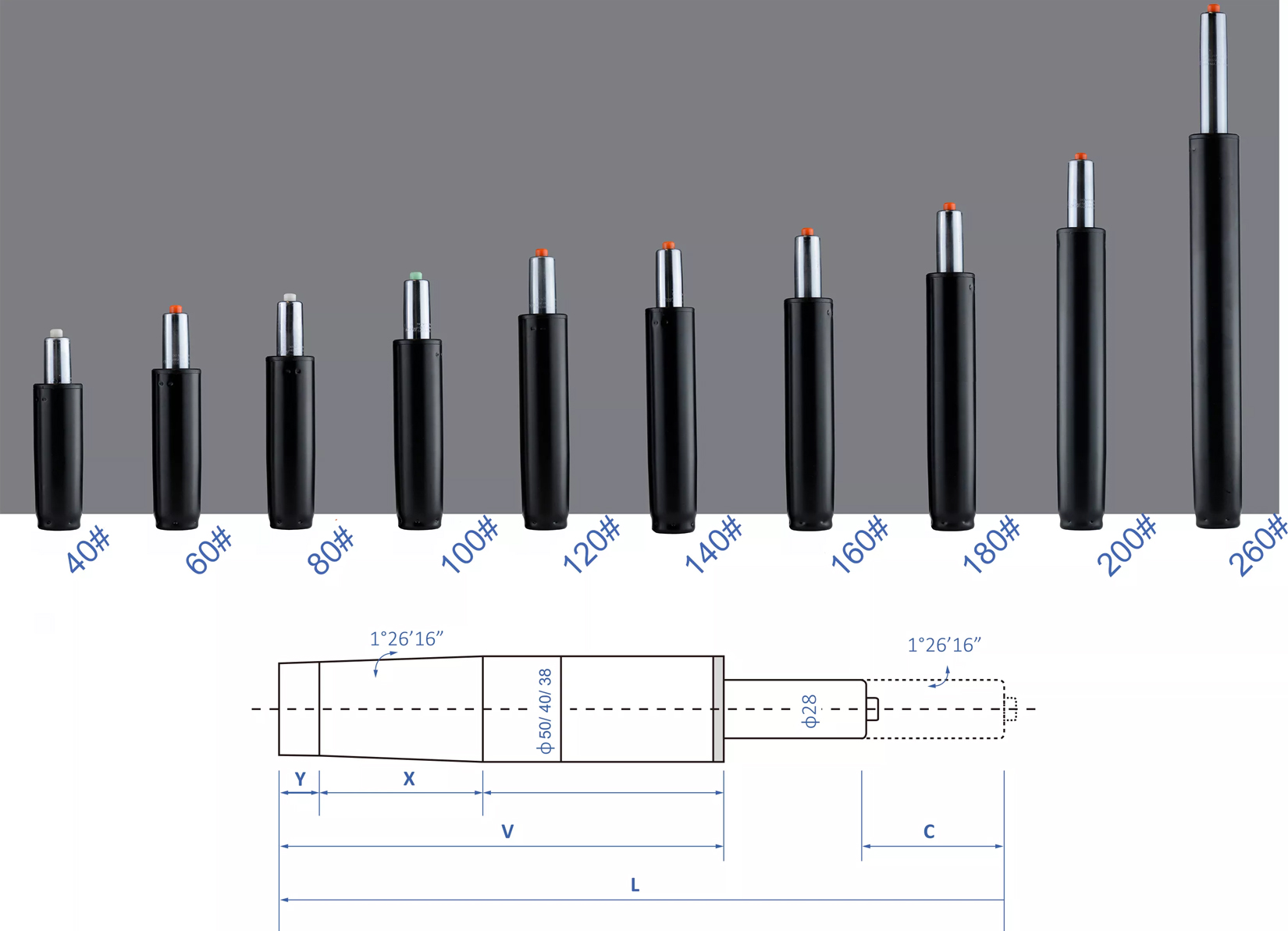

Model | L | C | V | X | Y | (F2)N±20 |
SGY-40mm | 230 | 40 | 145 | 58 | 10 | 460N |
SGY-60mm | 275 | 60 | 160 | 58 | 10 | 460N |
SGY-80mm | 306 | 80 | 175 | 58 | 10 | 460N |
SGY-100mm | 348 | 100 | 195 | 58 | 10 | 440N |
SGY-120mm | 390 | 120 | 215 | 58 | 10 | 420N |
SGY-140mm | 414 | 140 | 225 | 58 | 10 | 420N |
SGY-160mm | 450 | 160 | 250 | 58 | 10 | 420N |
SGY-180mm | 525 | 180 | 275 | 58 | 10 | 420N |
SGY-200mm | 545 | 200 | 295 | 58 | 10 | 420N |
SGY-230mm | 680 | 230 | 370 | 58 | 10 | 420N |
SGY-260mm | 705 | 260 | 385 | 58 | 10 | 420N |
chair gas cylinder Service:
Free samples:
All the samples are free, just freight will be undertaken by your side.
Or you can arange global express company to pick up the samples from our factory.
If you have your own size, welcome you send us your samples, we can make sample and production accordingly.
Customization:
Customization service are available, we will made the customized according to your drawing or samples.
Our company has hundreds of sets of non-standard abrasive tools, all of which are made for customers before, because our customized products are also very cheap, because you do not need to re-open the abrasive tools, so it can reduce the cost of non-standard products for you.
Multiple payment and trade terms:
FOB Shanghai or C & F price if you need TT/LC/DP/etc
Delivery:
15 days in regular season 21 day in peck season
